[NEW] MPXS Series Controlled Communicating Micro Vacuum Pumps

Ultra-compact, Ultra-powerful!

With the MPXS series, COVAL delivers a range of micro vacuum pumps engineered to provide industries with a solution for efficient, high-speed handling of airtight parts. As part of COVAL's lineup of intelligent vacuum pumps, the MPXS series offer exceptional performance, energy efficiency, and advanced communication capabilities.

The MPXS Series micro vacuum pumps transform vacuum handling across various industries, such as robotics, plastics, pharmaceuticals, and more.

Main Features

- Ultra-compact and lightweight:

12.5 mm wide and 87 g minimum

- Maximum vacuum: 85 %

- Suction flow rates:

➣ nozzle Ø 0,7 mm -> 0.53 SCFM

➣ nozzle Ø 1,0 mm -> 0.92 SCFM

- Vacuum control: NC (Normally Closed) or NO (Normally Open)

- Standard or adjustable powerful blow-off, controlled or automatic timed

- Vacuum check valve

- Standalone micro vacuum pumps or bankable from 1 to 8 modules with common pressure and collectable exhaust

- Standard Input/Output (SIO) / IO-Link mode

- Intelligent vacuum regulation system ASC (Air Saving Control) ensuring an average energy saving of 90%

Key features of the MPXS Series

• Ultra-compact and Lightweight

Measuring just 12.5 mm in width and weighing only 87 grams, these vacuum pumps are ideal for integration close to the part on robots or automated systems.

• Suction Power

Thanks to their single-stage Venturi technology, the MPXS Series micro vacuum pumps quickly achieve a maximum vacuum of 85%, making them ideal for dynamic applications requiring rapid cycle times.

A choice in nozzle diameter determines the power of the MPXS micro pumps. A nozzle diameter of Ø 0.7 mm achieves 0.53 SCFM, while a diameter of Ø 1.0 mm delivers 0.92 SCFM.

• Cutting Edge Technologies

Equipped with a Human-Machine Interface (HMI) and an IO-Link communication interface, the MPXS series allows for quick and easy installation.

It offers continuous diagnostics, centralized configuration, and efficient communication with higher-level protocols such as EtherNet/IP, PROFINET, and EtherCAT.

The MPXS series also features Air Saving Control (ASC) technology, enabling up to 90% energy savings when handling airtight products.

Learn more about ASC technology operation here

• HMI

The MPXS micro vacuum pump HMI allows for easy and efficient reading of the pump’s operation.
The high-visibility display includes all required inputs for full operation:

- Main information is easy to read

- Multilingual: EN - FR - DE - IT - ES

- Simple and clear event messages

- Settings and diagnostics menus

- Configurable display orientation: 0 – 180°

- Lockable to prevent undesired changes

• Modularity

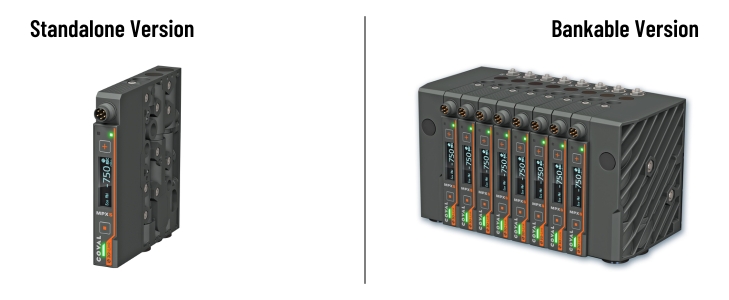

The modularity of the MPXS series offers a wide range of configurations, providing great flexibility in installation and use to adapt to the varied needs of industrial applications. The MPXS series is available as standalone modules or banks of up to 8 modules, with options for standard or powerful blow-off with common pressure and collected exhaust.

- Blow-off Control:

The MPXS series vacuum pumps feature an adjustable timed automatic blow-off, saving a controller output.

In addition, there is an optional version with powerful blow-off (F3), adjustable via screw, ensuring blow-off up to 1.94 SCFM.

- Electrical Connections:
With its M8 6-pin electrical connector, the MPXS series is designed for easy and quick installation. Available accessories include connection cables with snap-in M8 connectors, facilitating implementation.

Discover the MPXS range
