- The PVS series rotary vane vacuum pump, flow rate: 16m3/h, 230/400 V Tri - 50Hz
ref. : PVS16T3 - 50Hz -
- characteristics
-
Flow (Abs) (D Abs) 16m3/h Power (PM) 0.55kW Voltage (Ten) 175-260/300-450V Weight (Mas) 22.5KG Absolute pression limite (PLA) 150mbar Sound level (NS) 61dB(A) Coupling (RacV) G 1/2’’-F
- Dimensions
V1 Vacuum connection
V2 Vacuum regulating valve V3 Exhaust air connection
Note : All dimensions are in mm

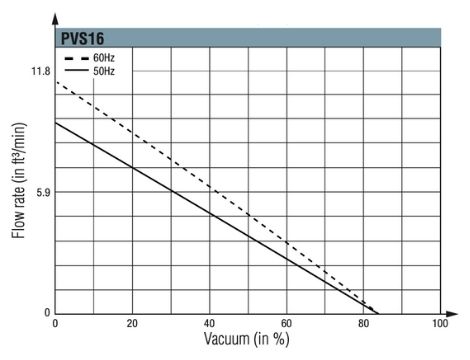

The values represent the average characteristics of our products.- Curves
